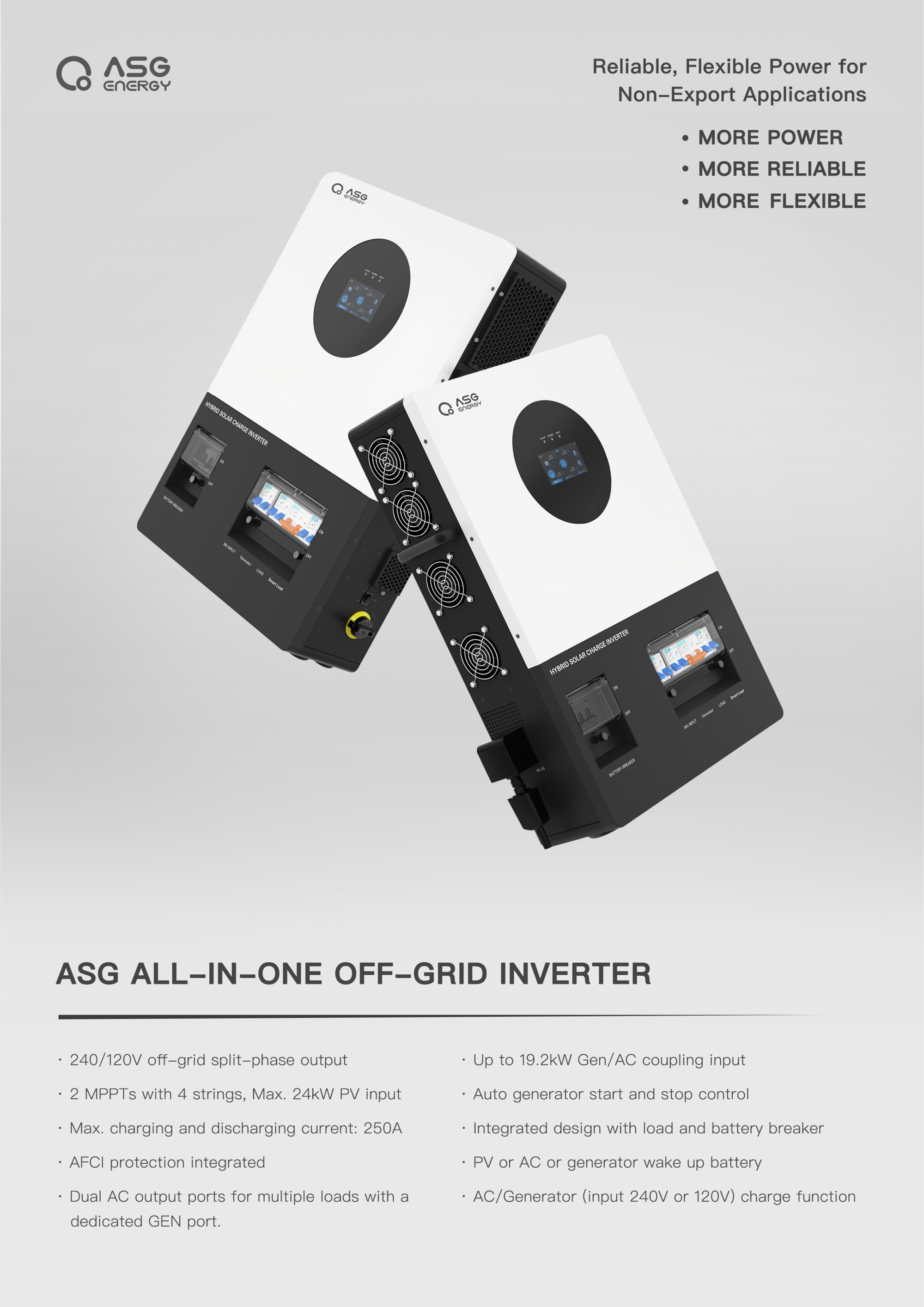

ASG-OF-10/12kW-NA
Made In China
· Integrated AC & DC circuit breaker, RSD, PV AFCI detection
· 250A bypass current.
·Max. 24kW PV input
·Dual AC output ports for multiple loads with a
dedicated GEN port.
·Up to 19.2kW Gen/AC coupling input
· Auto generator start and stop control·
· PV or AC or generator wake up battery
·AC/Generator (input 240V or 120V) charge function
·Dual AC output ports for multiple loads with a
dedicated GEN port.
·Up to 19.2kW Gen/AC coupling input
· Auto generator start and stop control·
· PV or AC or generator wake up battery
·AC/Generator (input 240V or 120V) charge function
Certifactions
EMC
FCC Part 15 Class B
Safety Standard
UL 1741
Grid Standards
UL1741, IEEE1547, RULE21
